Products
Lab-grade chemical analysis at the point of needPortable TD-GC-MS

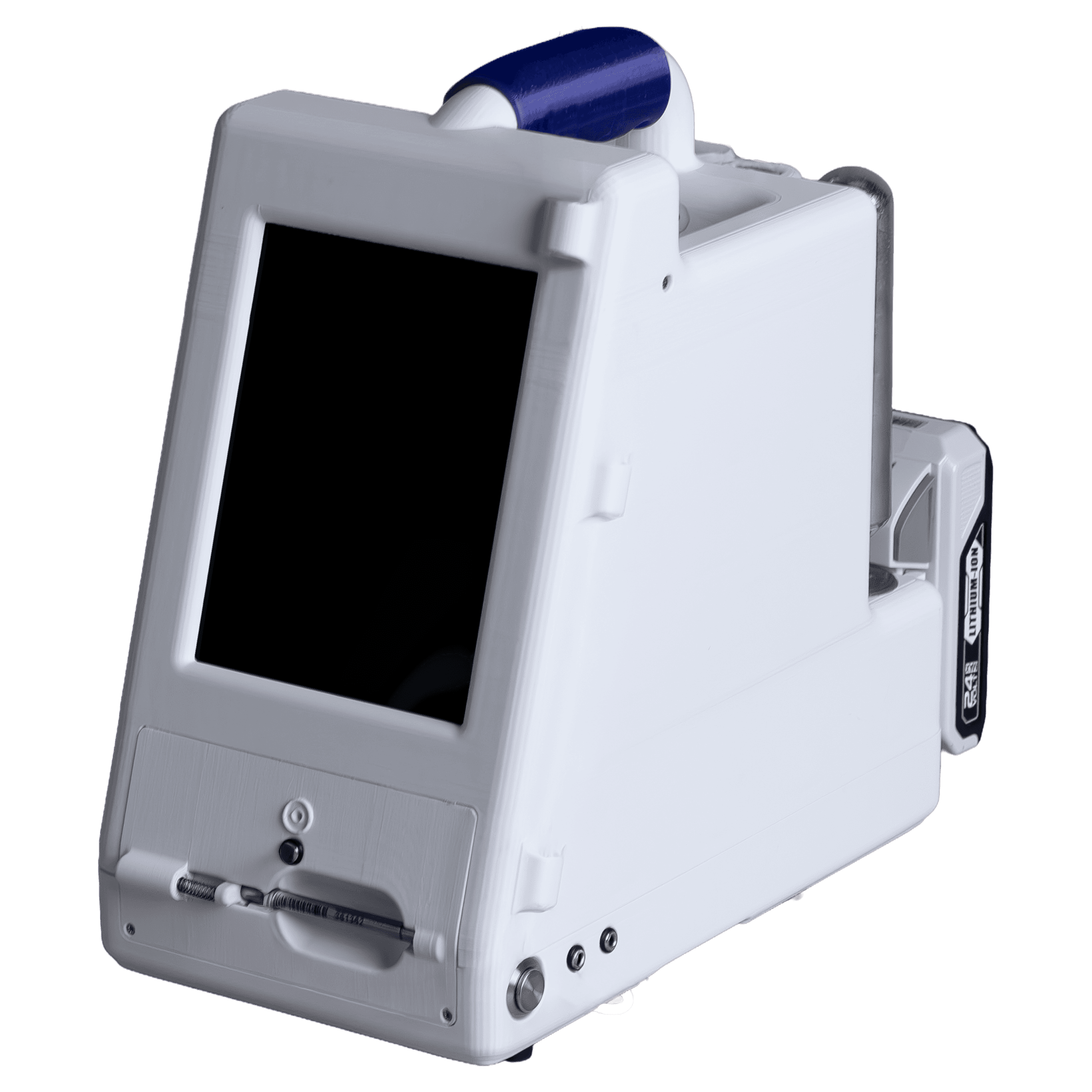

CLARION
Gold-standard GC-MS analyses in one ultra-compact system that brings the lab to the sample.

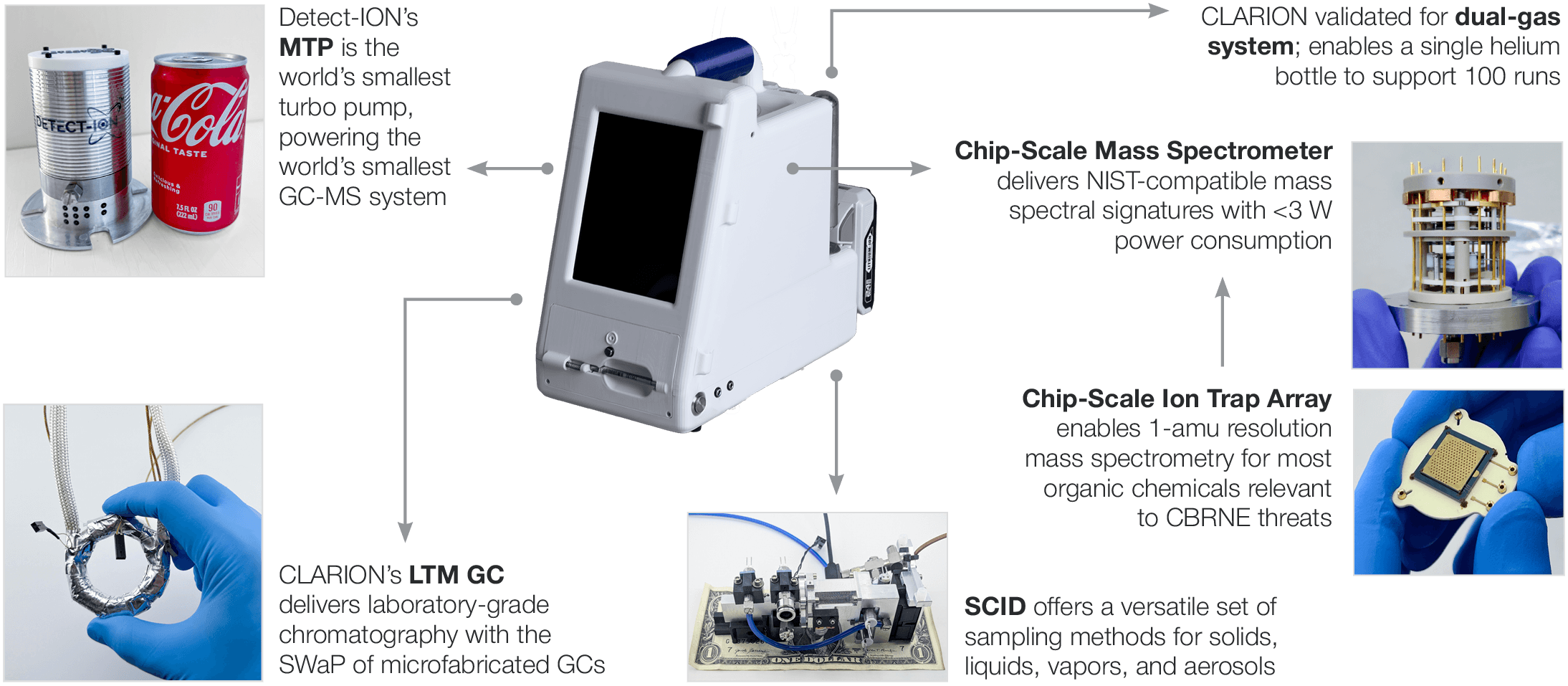

Inside CLARION
Sample collection, separation, and identification share one enclosure, so there is no sample transport and no waiting on a lab.
Thermal desorption inlet
Concentrates and releases trace volatiles from commercial sorbent tubesGas chromatograph
Separates each compound by retention time.Micro-fabricated ion trap mass spectrometer
Records the full fragmentation signature of each compound.HRMS-verified library
Every target is characterized on our reference instrument before CLARION calls it in the field.
Technical Specifications
TECHNOLOGY
Thermal Desorption Gas Chromatography-Mass Spectrometry (TD-GC-MS)
MASS RESOLUTION
Unit resolution (0.8-2.2 amu)
IDENTIFICATION
Retention time + mass spectral fragmentation, library matched
SAMPLE TYPES
Liquids, solids, aerosols, breath
SAMPLE MEDIA
Commercial sorbent tubes; paired breath specimens
ANALYSIS TIME
5-10 min
COMMUNICATION
External USB for connectivity to a laptop if desired; WiFi enabled
POWER
Hot-swappable rechargeable lithium-ion batteries (24 V, 7.5 Ah, 180 Wh)
DIMENSIONS
14.5 x 13 x 7 in (37 x 33 x 18 cm)
WEIGHT
15 Ib (6.9 kg)
Put CLARION to the test.
Tell us what you need to measure, and we'll show you what CLARION can do.
